Download wifi channels

This is the most comprehensive Wi-Fi analysis app in this selection. It scans your Wi-Fi network to determine signal strength, speed, and latency.

How to Find a Free Wi-Fi Channel with Wireless Network Analysis Software

One of the standard tips on what to do when you have wireless problems and slow Wi-Fi speeds is to change your router channel to one that's more free, since having many networks (yours and your neighbor's) on the same channels can cause those networks to perform poorly.

Finding free Wi-Fi channels is easy enough with special programs for analyzing wireless networks. There are Wi-Fi analysis apps for Android and apps for Windows or MacOS. This article will cover the first two options, which are likely to be sufficient. Once you've found a free channel, it may come in handy: How to change the Wi-Fi channel on your router.

Finding a free Wi-Fi channel using Android apps

I recommend this method for finding a free channel for the router, since most of the Android phones (tablets will do), and applications for Wi-Fi analysis are completely free and available in Russian (for Windows with these two factors are more complicated).

Wifi Analyzer

The first and, at the same time, free and the easiest application for analyzing Wi-Fi networks to find free channels is Wifi Analyzer, available on Play Market here: https://play.google.com/store/apps/details?id=com.farproc.wifi.analyzer (be careful, there are many more applications under similar names, fully working and with the best reviews is this one).

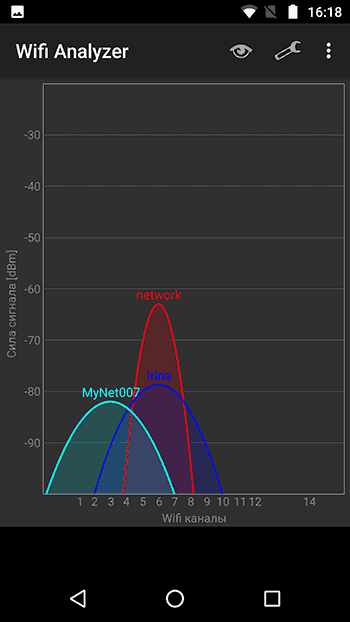

After installing and launching the application, click on the icon with the image of an eye at the top and select the item "Channel Graph".

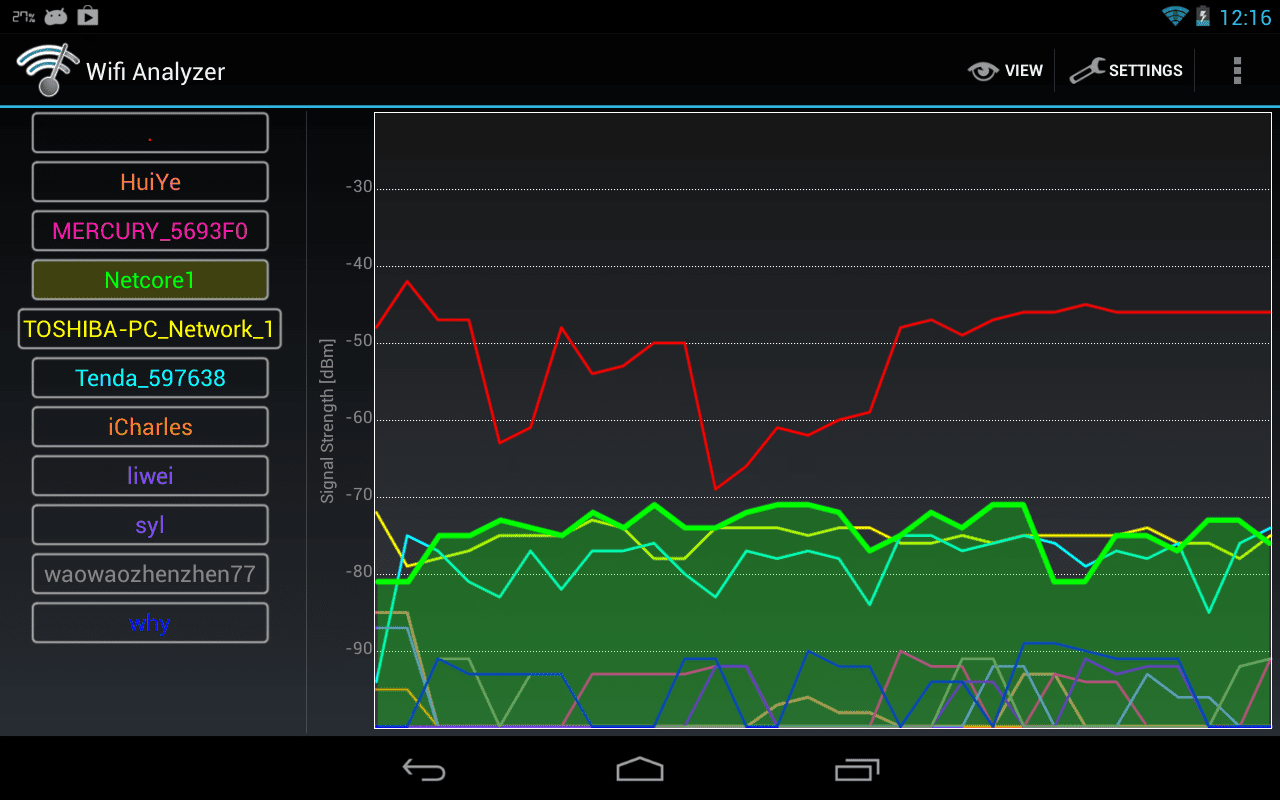

On the graph you will see a representation of your and your neighbor's networks (take into account that the network, say, on channel 6, also affects neighboring channels): their channels and power. At the top left of the graph, you can switch the band (2.4 GHz and 5 GHz).

For example, in the screenshot above you can see that there are three networks on the same (6th) channel at the same time, and the freest channels will be channels 9-13 (here it is worth remembering that there are devices that do not see networks on channels after 10th, and the router requires the RF region to be set to be able to select these channels). And the network on channel 3 is quite low-power (the router is probably far away), that is, if you choose the 2-3rd channel with the connection, probably, everything will be fine.

If you can't choose the best channel yourself, look at the "channel rating" (also by clicking on "Eye"). Channels with the highest number of stars are most preferred.

↓ 01 – InSSIDer Lite [ Windows & Mac | Free ]

inSSIDer is Wi-Fi optimization and troubleshooting software that takes Wi-Fi network discovery to a whole new level. With a quick glance, you'll find poor channel location, low signal strength and RF interference in the 2.4 and 5 GHz bands. inSSIDer comes in two versions: inSSIDer Lite (Windows & Mac OS X), a Wi-Fi scanner for home use and inSSIDer Office (Windows & in Beta for OS X), which adds additional troubleshooting capabilities such as RF spectrum analysis, expert analysis , export to Chanalyzer and network deployment to name a few.

WiFi lives in noisy environments – 2.4 GHz and 5 GHz bands to be exact – and one of the first steps to understanding why your WiFi may not be working as you expect is to simply discover all the networks around you. With inSSIDer Lite you can quickly see your neighboring networks as well as important information about those networks, including channel placement, signal strength, security type, supported data rates, and more.

↓ 02 – Vistumbler [ Windows | Free ]

Vistumbler is a free, open-source application that scans wireless networks within reach of your Wi-Fi antenna, monitors signal strength over time, and handles almost everything else that other applications of its kind do. What sets Vistumbler apart from the others is its support for GPS and real-time tracking in Google Earth, which displays hot spots on a map. It supports Windows Vista, Windows 7, Windows 8 and Windows 10.

Real-time WLAN information and network analysis. Acrylic WiFi is a free WiFi scanner that displays WiFi access points and connected devices, shows information about security mechanisms and gets common WiFi passwords thanks to a plugin system. Our WiFi scanner is able to collect information from 802.11 / a / b / g / n / ac networks.

• Access points: information about WiFi networks (SSID / BSSID) and connected users.
• Signal strength: Signal quality graphs for WiFi channels and detected devices.
• Inventory: Name of known WiFi devices.
• Passwords: Default WiFi passwords and WPS keys (password verification).
• Channels: WiFi channel scanner and WiFi networks across 2.4 GHz and 5 GHz channels.
• Security: Network authentication and security details for WEP, WPA, WPA2, and Enterprise (802.1X) WiFi networks.

Programs

There are plenty of value-added software programs on the market for comprehensive network testing to get you started with your wireless network. The following tools are mostly free, but reduced in functionality.

At the moment, there are many Internet wireless analyzer programs for Windows systems. Below are the most commonly used tools by Internet users.

InSSIDer .

The most common paid program, which can be downloaded for free for only 7 days by going to the official website of the manufacturing company. As a rule, 7 days of free use is enough to find a free channel. To get a trial license, you need to click on the download button, enter your data and wait for the key to mail. When you run the program you will see a list of networks in several bands along with a graph of the channel allocation by power.

WirelessNetView

WirelessNetView for Windows is a program designed to drill down into your wireless local area network and display the information collected. Features a simple and attractive graphical interface. It helps to detect unauthorized access points, for example, from a neighbor, display connected clients, scan and analyze used wireless networks at 2.4 and 5 gigahertz, build signal graphs and analyze their power. You can download it from the company's official website.

Please note! Allows you to get a list of passwords because of the built-in plugin system.

Linux

Linux continues to be popular with network administrators, large companies. That's why there is a wide range of applications that allow you to look online and check the load of wireless Internet connections and make adjustments.

LinSSID

LinSSID is a handy program designed to monitor wireless network utilization and load status. It has a minimum number of settings to start analyzing wireless network resources, scanning and displaying information. It shows a lot of information in the form of clear graphs, in particular signal strength with address, type of data security. It is based on a utility with a wireless connection where help from administrators is required. In its functionality and appearance resembles Inssider. Installation of the service is free, using the source code on the official site of the company.

iwScanner

iwScanner is a handy Wi-Fi scanner that allows you to download information about detected wireless connections, adjust the scanning speed, display a histogram in each connection, connect to a point, and work as usual.

Bottom line

Now you know which channel to put on your WiFi, how to choose it, and what it affects. Understanding these points allows you to improve the quality of your Internet network, reduce interference, and increase your data transfer rate.

• https://14bytes.ru/vybor-kanala-dlja-wi-fi-routera/
• https://sonikelf.ru/chto-takoe-kanal-wi-fi-i-kak-ego-nastroitispolzovat/
• https://wifika.ru/kakoy-vybrat-wifi-kanal-i-kak-ego-nastroit-na-routere-netis.html
• https://WiFiGid.ru/besprovodnye-tehnologii/kanaly-wi-fi
• https://help-wifi.com/sovety-po-nastrojke/kak-najti-svobodnyj-wi-fi-kanal-i-smenit-kanal-na-routere/
• https://ichip.ru/sovety/ekspluataciya/uskoryaem-wi-fi-kak-nayti-svobodnyy-kanal-i-zabyt-o-sboyah-566332
• https://ZnaiWifi.com/instrukciya/kak-vyibrat-kanal-wifi-na-routere.html
• https://besprovodnik.ru/kanaly-wifi-kakoj-vybrat-dlya-routera/

Updating router firmware

The TP-Link firmware upgrade option is the best. Immediately you get a ready-to-use frequency monitoring tool. Of course, the router is only able to check its own operating range (2.4; 5; 60 GHz).

The range of information varies greatly. Choose a file by carefully studying the label. If the latter is missing, do not despair. Iron versions, firmware are often listed by the admin panel. Avoid self-initiating: an experimental test can kill the hardware.

The software refresh procedure will require access. Believe it, setting up the router itself is as simple as possible. As a last resort, perform a hardware reset by pressing the appropriate button.

1. Download the firmware file.
2. Save it on your PC.
3. Use the cable to update the software by selecting the appropriate item on the router administrator panel.
4. The software requires a cable connection. Otherwise it may crash. Also try to provide uninterrupted power supply.

Possible problems and solutions when connecting Wi-Fi analyzers on iOS

Due to the fact that the AppStore strictly controls the quality of applications downloaded to it, the utilities described above are completely safe to use and, most likely, there will be no failures in their work. If problems occur, it is recommended to act in the standard way: restart the device, reinstall the application, perform a factory reset of the smartphone. Further, if the program, nevertheless, will not work correctly, you must replace it with similar functionality from the list and send the report to the developers of the application.

Thus, even in the current situation it is possible to solve the problem with hanging Internet via Wi-Fi for a long time. It will be enough to download and install one program from the list above on your i OS device, and then from time to time check the status of the Network and adjust the router settings.

Podgornov Ilya Vladimirovich All articles on our site are audited by a technical consultant. If you still have questions, you can always ask them on his page.

How to boost the wi-fi signal: Ways Network users often encounter the problem of a poor signal emitted by the router. The first thing that comes to mind is to change the device.

Wi-Fi channels – what they are and what they are

They refer to the frequencies on which the user's access point functions. Problems often arise in apartment buildings:

Almost all equipment broadcasts communication on the purity of 2.4 GHz, and in the new generation equipment this parameter is equal to 5 GHz. In Russia, channels from 1 to 13 are allowed – all wi-fi works in this range.

Important! Features of equipment functionality in the Russian Federation and the permissible frequencies of Wi-Fi channels should be taken into account when configuring the devices.

Each of the bands operates on a specific frequency in the 5 GHz range. They are distributed unevenly.

Important! The standard interval of the Wi-Fi signal is 20 MHz, without overlapping adjacent bands. Regardless of the frequency, you should select any free line.

How to find a free channel on the router

When searching for the selected hardware or a "clean" slot, experts advise using special programs. Applications allow you to find out all available information concerning the device that provides a connection to the Internet.

InSSIDer utility.

The program shows information about the regulation of broadcasting, the impact of nearby equipment on the user's connection. It offers recommendations to improve router security and speed.

• Download and install the application from the official site of the developer;
• launch it and in the appeared window select "NETWORKS" block;
• select the actual one among the ones displayed on the device, study the connection features – they are given in the column "CHANNEL".

After the test, you can look for a free band and rebuild the device to it.

WifiInfoView

The application is similar to the previous one, but has less functionality. To view important information you need:

Important. WifiInfoView shows information about all available connections. You can see the available bandwidth and move your hardware to an unused Wi-Fi channel.

What programs can be used to check Wi-Fi channel load

Not all users know how to check Wi-Fi channel load. To do this, you can use various applications. The use of specific applications depends on what operating system is installed on the user's computer or laptop. For example, for the operating system Windows it will be the following applications:

All of these applications are available for download online. They allow you to determine the most free channel. If there are no free ones, which is often the case in apartment buildings, a good solution is to buy a router operating on the 5 GHz frequency, as at the moment this frequency is the least loaded.

By default, by downloading the application, the user gets a minimum package of services. You'll have to pay for additional features: special rates are available. Check programs work quickly and efficiently, allowing you to solve the problem of Internet access when there is a heavy load of wi-fi channels.

Attention! You can check the load online for free. If the user is offered to pay a fee for this service, it is a fraudulent or viral site.

Windows

Check programs designed for the operating system Windows, perform the following functions:

The programs have a simple interface, everyone will be able to master and use them.

InSSIDer .

By downloading the application, the user can search for free during the week. As practice shows, this period is quite enough to solve the problem. The key to access the application is sent to the user to the e-mail address that he specified when registering on the official website. After starting the test, the screen displays an easy-to-read list of networks, distributed in two columns, and their power is taken into account.

To use the software, it must be downloaded from the Internet. The user will be presented with an archive with an installation folder, designed for the operating system Windows 7 and 8. It is necessary to unpack the archive, open the folder, run the application and follow the instructions on the screen.

When the installation is complete, a new shortcut will appear on the desktop. If this does not happen, you need to restart your computer. The program is available not only for computers and laptops, it can also be used on smartphones with the Android operating system by downloading from the Google Play app store.

In order to run a network scan with this application, you must first enable wi-fi. You can diagnose networks only if they are available at the moment. After launching the program, you need to go to the Network connections section. It will display all Wi-Fi networks that are currently available, including the user's current network.

If this network is currently active, an asterisk will be displayed next to it when the Wi-Fi diagnostic is finished. Next, select the "Network" tab and carefully read the information below that tab. From there, you can learn about each network, its distinctive features and technical characteristics.

Advantages of the program

By downloading the application Wi-Fi analyzer for Windows 10, the user will get a complete report on the work of his Wi-Fi module. For ease of use, the creators have introduced a color indication of the found communication channels, so as not to get confused when connecting.

• the memory of devices where the program is downloaded is not clogged;
• the program looks for even the weakest incoming signals, which the computer can not detect without the application;
• the sensor shows how strong and reliable the selected signal is when connected;
• the app gives tips on how to solve network problems – if you stick to them, you will get a more reliable and stable connection between your PC and your wireless network;
• all illegal networks will be automatically removed from the search;
• there is an option to connect alerts if a more favorable network becomes available.

The only serious disadvantage of the program is that it is not compatible with older versions of Windows.

Installing the Wi-Fi Analyzer

To install the program, you only need to spend a few minutes. The first thing to do is to find it on Google Play or on the official microsoft.net website, download it, and click "run". After a complete download, the program will automatically scan all available connections and offer to diagnose them.

The result will be displayed as a graph, which is transferred to a special table. The phone version is not much different from the computer version, the signal in both cases will be displayed as a parabola. Having acquainted with the data, the user will understand which network is better to choose.

Studying the chart, it is possible to determine which networks overlap each other and create certain interference that negatively affects the wi-fi. The channel rating shows the networks that are prone to strong interference, and it is advisable not to use them. The list provided also includes information about the different channels, their security modes, encryption types and signal levels.

Using the meter signals function, you can find out the location of the network source – the stronger the beeps are, the closer the source is. The "Tulses" button is needed to display devices that work on local sources.

For Windows 10

Once the program is installed on the computer, after activation, a message will appear on the monitor indicating the best network connection that the user can use.

The user needs to pay attention to several icons denoting signal qualities. The program may indicate that the Wi-Fi is weak and it is better to choose another channel, as well as available lines that do not go online or are not protected.

For Windows 7

Wi-Fi Signal Meter is designed to be installed only on Windows 10 or newer versions, all other operating systems will not be synchronized with the program, so users will have to download a Windows update if they want to work with this particular application.

WiFi Signal Meter

Using WiFi Signal Meter, you can check the speed of your WiFi, measure the signal level, and see the channels with the lowest traffic.

The app has an updated user interface and detailed instructions to help you easily select the right Wi-Fi channel. In addition, WiFi Signal Meter has other essential features such as viewing real-time graphical data, viewing download and upload speeds on a particular network, etc.

Overall, this is one of the best Wi-Fi signal strength apps that Android users should try.

Network Analyzer

This is a complete Wi-Fi channel scanning app that can also diagnose problems on your Wi-Fi network and on remote servers.

This Android app (there is an iOS version available) is best for those who want to know every little detail about their local network. Network Analyzer has various network diagnostic tools such as a port scanner, DNS lookup and more. You can also use it to see your Wi-Fi signal strength, its encryption, and the router's manufacturer.
