How to make a WiFi antenna with your own hands – a detailed manual with pictures
Sometimes the power of the existing router may not be enough and the laptop will be slow to catch the signal, and it is expensive to buy a new one. In this case, you can make a WiFi antenna of your own hands, and thereby strengthen the signal. Most often such a need arises when you need to transmit a signal over a long distance, or there are too many obstacles between two points. Homemade antennas can be made even from improvised means and some of the instructions we give below.

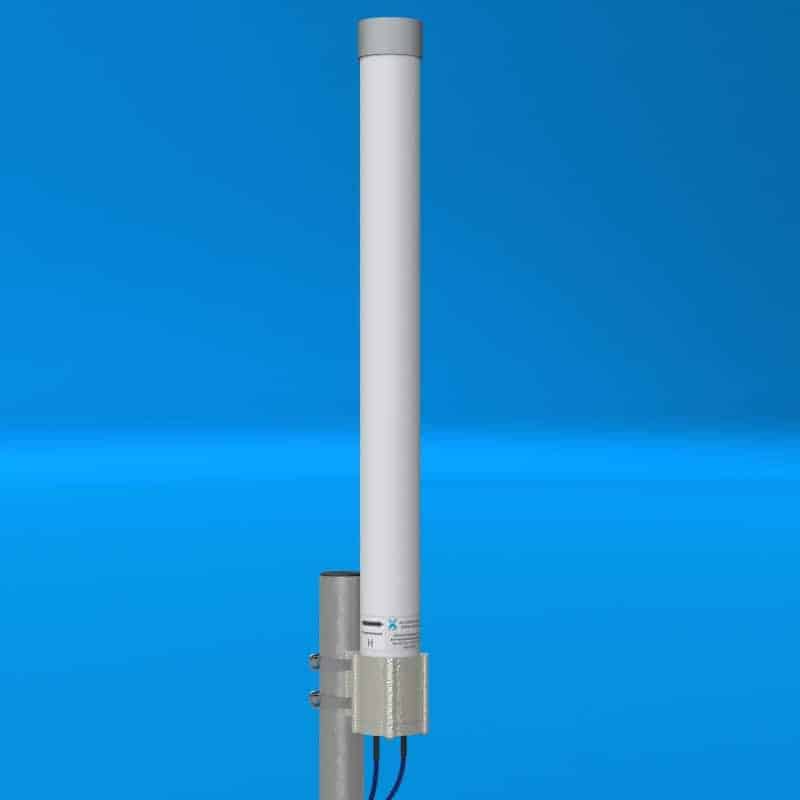

There are two basic types of antennas for WiFi routers: outdoor and indoor. Outdoor routers tend to be larger. There are also special mounts on their housings, which allow you to fix the device on a surface or support. Outdoor models are used to transmit a signal from one point to another over long distances. For uninterrupted communication, there must be no obstacles between these points.
Devices for indoor use (apartments, private houses, offices) are less powerful and have smaller dimensions. Some models have mounts with which they can be fixed on the wall.
Variations of WiFi-antennas with their own hands
Double bikvadrat
As you can see, the double biquadrate is easy to make. It does not require much time and expensive materials. Although you need to very carefully follow the dimensions given in the instructions. Nevertheless, the biquadrate is capable of quality transmission of an amplified and omni-directional signal and ensures stable operation of the network.
Powerful WiFi antenna gun
In order to get a powerful antenna-gun, capable of transmitting a directional signal at 10 km, it is necessary to strictly follow the instructions, because the slightest deviation can severely degrade the characteristics of the finished antenna. Each step should be done as precisely as possible. The procedure is as follows:
- The first thing to do is to cut out circles for the antenna. We mark the centers of the diameters of the circles on the metal sheet, and then drill them. To ensure greater accuracy, you should first drill the center with a thinner drill bit. The hole should be slightly wider than the stud. After using a compass you need to draw circles on a metal sheet. It is first necessary to cut out a square, and after that carefully cut off the edges to get a marked circle.
- Next, we take a long stud, and cut off all the excess along the length of the antenna, taking into account the width of the nut. The details look as follows.
- It is easy enough to assemble the antenna. It is recommended to use a metal ruler when assembling as it is more accurate than a plastic one. The outermost 2 disks should have holes in them so you can plug in the cable. The cable connector itself can be made from an old antenna (router or Wi-Fi adapter).
- Now you need to tin the disks with copper. Through the previously made hole in the last circle, pass the cable and solder between the winding and the disk.
- Put the middle strand through the hole in the second disk and solder.
- Wireless Wi-Fi adapter screwed to the output of the connector and glued it to the bracket.
- The antenna is ready.
A powerful, homemade Wi-Fi antenna for receiving signals from remote open networks
It is quite common to find open Wi-Fi networks with good download speeds. However, they have a limited range, which does not allow you to constantly count on free internet. You can solve this situation by using a powerful antenna capable of capturing Wi-Fi several kilometers away from its source.
The necessary materials:
To assemble the antenna, you need to cut round plates from canning lids. Before doing this, you need to find the center on them and drill a hole of 8 mm in it for further threading of the plates on the stud.
You can determine the center with an ordinary office ruler. It is placed on the lid so that its corners are on the line of the circle. A felt-tip pen is used to draw two parallel lines along the edge of the ruler, and then the same marks are made, but with an offset of 90 degrees. As a consequence, the lid will get a grid with a square in the middle. Drawing a diagonal in it you can mark the center for drilling. It is most convenient to mark one cover and drill them all together in a pile, which will greatly speed up the process.
Next it is necessary to trim the covers to the diameter corresponding to the scheme of the antenna. To do this, the first cover is left unchanged, the second is cut under 68 mm, the third under 50 mm, and another 17 pieces under 40 mm.
It is very important to make the trimming straight, so a marking is made first. The circumference is drawn with a compass or with a paper clip.
Long Range Wi-Fi Antenna
Such a device will greatly enhance signal reception and transmission. If conventional antennas deliver signals to a maximum radius of 5 kilometers, the long-range transmitter will increase this value to 10 km.
- Prepare the fiberglass which will be used as a reflector;
- cut it into a rectangle of 10 x 14 cm;
- Drill holes in the middle of the plate for the cable;
- Using copper wire, construct the antenna itself, it is two squares connected to each other;
- Solder the cable to the copper squares;
- Attach the antenna to the reflector.
Scheme of the device Wi-Fi antenna is quite simple: a reflector, the antenna itself, made of copper wire and cable. Such a design, despite its simplicity, is able to deliver a signal over a long distance.
Antenna up to 50 kilometers
This device is not difficult to make your own hands, following the principle described above. The main difference is the large size of the reflector, approximately 35 by 45 centimeters.
Vibrators made of fiberglass are installed on it.
In other points, the scheme of making a wi-fi antenna capable of receiving and delivering signals at a distance of 50 kilometers, will be similar to the step by step description of the manufacture of long-range antenna.
If you need to strengthen the received Wi-Fi signal, do not rush to visit stores with expensive routers and add-ons. It is possible to improve the performance of your existing antenna with additional reflectors and gratings.
Try making a powerful transmitter with your own hands, it will be much more efficient and clearer to receive and deliver signals even over long distances. The above instructions will help you make a powerful long-range Wi-Fi antenna.
