Strengthen the wifi signal from the router in the apartment

It is required not only to know how to connect the repeater to the router, but also how to install it correctly to get a sufficient signal. To do this, select a zone of stable reception, where the device will retransmit the signal sufficiently. When placed in an area with a low signal further distribution of the Internet will be low and of poor quality.

How to increase the signal wifi router in the apartment with your own hands?

Any modern home is literally stuffed with modern technology, to manage which you help both push-button systems, and electronic applications. Not so long ago it became popular even to use mobile applications to start the vacuum cleaner, the oven, turn on the TV, which are controlled via wi-fi signal, it is also used to work on the Internet, watch programs, games, etc.

But sometimes the use of such a communication channel is limited by a number of factors, which is why many people try to figure out how to strengthen the wi-fi router signal. To do this, you can use one of several methods.

Minimizing the impact of other devices

The peculiarities of signal transmission involve the need for its propagation in space. Alas, in an open area in reality, the coverage radius will be quite large with excellent signal quality. But in a room with reinforced concrete walls, lots of furniture and, most importantly, sources of electromagnetic radiation, wave propagation meets a huge variety of obstacles. Of course, not all factors have the same degree of impact.

If the location of the router is already chosen optimally, you can try to change the efficiency by adjusting the router settings. Not all software sets maximum or at least optimal data transfer parameters. Therefore, one way to boost your wi-fi signal is to set up your wireless network manually. Let's take a look at the most popular and affordable ways.

Increasing the transmitter power

The vast majority of users firmly believe that their router is operating at maximum power, but this is not always the case. In the technical parameters for your home network, you can purposefully check the power level and, if you wish, set a different one. To do this on the control panel, for example, you need to select the menu "Wireless Network", then click "Professional" and in the window that opens find the item "Power Management". This control is typical for routers of ASUS company and similar, here the change is made by moving the checkbox, which is accompanied by the display of power in percentage ratio.

Other router models may have different ways to control power. For example, for Tp-Link routers, you will need to enter the "Wireless" menu, then select "Wireless Advanced" and then you will need Transmit Power, where you can set:

• High – This is as close as possible to 100% transmitter power;
• Medium – Medium corresponds to half of the adjustable limit;
• Low – is the minimum power that the wi-fi adapter can provide.

How to enhance a Wi-Fi router's signal at home

In order not to wonder how to improve a bad wi-fi, it is enough to study the instructions on the proper installation and further debugging of the equipment. Often illiterate configuration of the router becomes the cause of poor connection quality.

If the first option is excluded, in complicated cases, when it is necessary to stabilize the line in a large apartment or private house, additional units are used. They are called "repeaters". Their main function: to receive the signal from the main device, amplify it and distribute it around.

If money allows, you can install a repeater in each room and then there will be no problems with a weak Wi-Fi signal.

Simple methods of strengthening Wi-Fi signal

To improve the performance, you can make a change in the frequency at which the hardware works. For different types of housing, their indicators are recommended:

Features of the location of the device

It is possible to strengthen the signal of the Wi-Fi router by the correct location of the adapter:

• If the equipment is centrally located, the radio waves will spread evenly around the perimeter;
• the router should be located near a window or doorway – so it will fade less often;
• Do not be close to microwave ovens and other devices operating on the same frequency as the router – they will interfere with each other, the adapter will hang up;
• it is not recommended to install the unit in metal boxes, boxes – iron shields the waves;
• do not place the unit in a child's room or bedroom – full-fledged studies on the safety of its radiation have not been conducted, the best option is the hallway.

You should not put two similar devices in one room. If there is no choice, they should be defined for different broadcast channels, from 1 to 12.

Mode of operation of modern routers

• Bridge. Requires the connection of two devices on which the bridge mode is enabled simultaneously. That is, the technique is used to transmit communication to the neighboring building without wires.
• Router. This mode is typical for most routers. It is possible to redistribute IP-addresses of the Internet provider between the devices. Port forwarding, opening access to documents, printers is enabled. Once connected to the network, automatic registration is saved, so you no longer need to enter a password to gain access.
• Access Point. The action is based on receiving a wired signal, which is converted to wireless.
• Client. The devices receive a wireless signal, which is transmitted to the next device through a wired channel.
• Repeater or Repeater. A wave is propagated from the main Wi-Fi device, which is amplified by the repeater for further transmission.

The mode of operation is selected depending on the size of the room, the need to strengthen the connection. Household users should not change the settings on their own without understanding the functionality.

If home or work devices are not functional enough, can not enter the network, the work can be strengthened.

How to make a repeater from a router

Setting up a router in repeater mode follows different techniques. It is common to use a general scheme that is suitable for a variety of devices:

1. Enter the menu of the main device (router) from which the wireless wave will be distributed.
2. In the window that appears, specify the login and password, usually written on the body of the device.

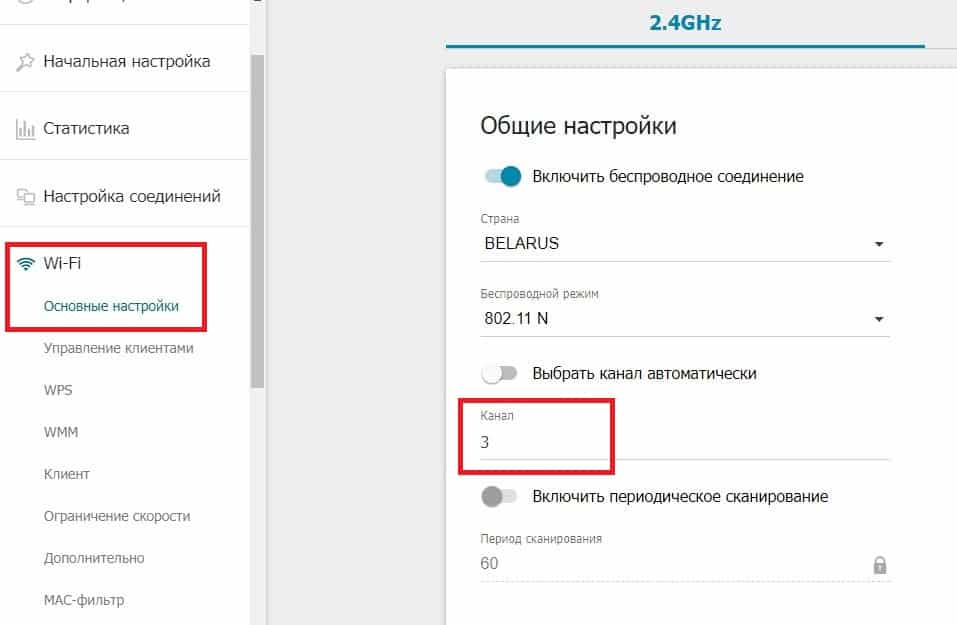

3. Go to the "Wireless Mode Settings" section, where the window will appear in which you enter the channel number.
4. They find a modem that copies the signal and connect it to the computer.
5. They activate the WDS mode in the settings by clicking a tick in the box next to it.
6. In the box for the channel number indicate the required digits.
7. They enter the password (sometimes the device asks for the encryption type).
8. Press the "Save" button.
9. Perform a reboot of the repeater.

Router with Repeater function is configured according to the specified method in the correct algorithm. If all steps are performed correctly, activation takes place immediately after PC reboot.

If the above steps are done in this order, but the router does not work in the repeater mode, perform the following commands:

1. Go to the settings of the device, resetting them to their initial settings (zeroing).
2. Reconnect the router as a Wi-Fi repeater following the given steps.
3. Check the IP addresses for conflicts (if there is such a problem, change the last digit in the address: usually just add one).
4. When prompted, the encryption type is specified, and a password is entered.
5. As soon as the repeater mode appears, disable WPS.

Often the problem may lie in the use of two devices of different companies. Then it is recommended to choose a specialized repeater that does not allow frequent breaking or weakening of the transmission wave. The user will not have a constant need to reconfigure.

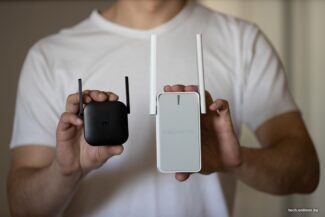

Types of Amplifiers

Like any other gadget, wireless amplifiers vary in power and design qualities. There are several types of repeaters on the domestic market:

• Portable or personal. This option is suitable for amplifying the signal when using one or two mobile devices. They are characterized by compact size and low power They can be connected via a USB port;
• Home. Such equipment is used at home to amplify wireless networks with up to 5 devices. In this case the range of operation can be up to 20 meters;
• Office. This category includes powerful repeaters, which can be used as a full-fledged access point. A key advantage is a wide range of antennas, providing a stable signal with up to 50 connected devices.

How to choose a Wi-Fi amplifier

Before buying a repeater, you need to familiarize yourself with a lot of functional and design qualities. First, the user must decide how many devices will be connected to the router. On this basis, it will be possible to choose the amplifier according to its power and supported Wi-Fi standard.

You should also pay attention to the following criteria.

Functionality .

When buying a budget model, you should not count on a wide functionality. The main task of such a device will be to amplify the wireless signal with a range of up to 15-20 meters. However, more expensive models can offer a lot of interesting features:

• The access point mode. With this feature the amplifier can independently distribute the Internet. To begin with the user has to connect a network cable to it via the Ethernet port. Then the repeater can fully replace a router and provide a stronger signal;
• Beamforming and MU-MIMO technologies. Allows you to direct the signal to a specific part of the room;
• WPS. This button simplifies the setup process;
• Remote control. You can interact with the amplifier from a distance. For this purpose, there are special applications designed for Android and iOS devices.

Number of antennas

Many users are mistaken in stating that the number of antennas affects the range of action. In fact, they only play an important role if the device supports MU-MIMO technology. In this case, the antennas can be pointed in the direction of the connected device.
